Manure treatment is a vital process in poultry farming, aimed at managing waste, reducing environmental impact, and creating valuable by-products such as fertilizers and biogas.
Model:11FFG-116
Total height:Dia 5600mm Height10050mm(Equipped with a rain shelter）
Equipment weight:30T
Cover an area:40m2
Effective volume:100m³
Daily processing capacity:10-12m³/day
Daily output:3-4m³/h
Power supply:380V 50HZ
Total power:54.5KW
Operating power:Around 27KW
*Tank organic fertilizer fermentation system, or fermenter, is suitable for livestock and poultry manure treatment. The equipment can adapt to high humidity and high cold in different regions, not only reducing environmental pollution, solving the farming manure treatment, and its multiple performances also for the extension of the breeding industry chain, improving the added value of the product, providing a new type of solution.

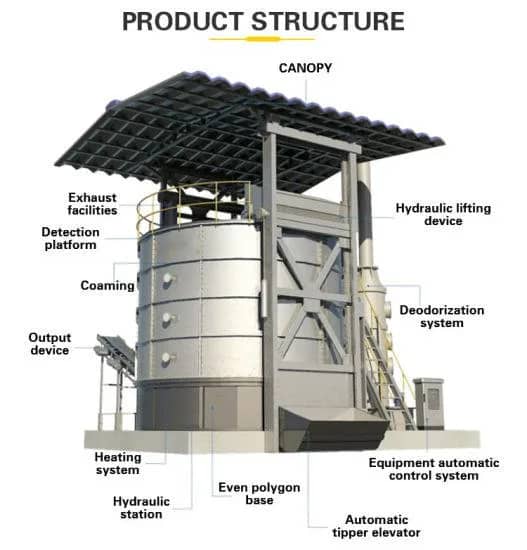

*This equipment adopts a type structure, effectively utilizing the floor space and reducing the equipment installation requirement on the site. The whole equipment structure consists of a feeding drive device, spindle drive device, cylinder, stainless steel liner, PLC electronic control system, etc. The tank is fully closed, and the fermentation process is not affected by the natural environment, so the products produced meet the industrialized production standards to prevent the leakage of the waste gas produced by fermentation to eliminate secondary pollution;
(1)Moisture:
(2) Temperature
(3) PH value
(4) Oxygen
*Equipment closure: The equipment adopts a closed type, and the fermentation process is not affected by natural environmental temperature and humidity so that the production of rotten clinker meets industrial production standards, preventing the leakage of waste gas generated by fermentation and eliminating secondary pollution;
*Thermal insulation treatment: the outside of the equipment is insulated with polyurethane, which is less affected by the outside world and ensures year-round fermentation;
*Driving design: adopting a hydraulic dynamic, ample torque can ensure the total load load operation of rotting materials in the equipment to ensure safe and reliable operation and low maintenance cost;
*Energy-saving design: through the heat exchange processing system, the hot air in the equipment is recycled for fermentation, which reduces the consumption of electric energy and improves the energy utilization rate at the same time to achieve the effect of energy-saving, consumption reduction, and rapid fermentation;
*Long service life: All parts of the equipment in contact with fecal matter are made of 304 stainless steel, which is corrosion-resistant and has a long service life;
*Electrical control: the use of PLC chip automatic and manual combination of control system, easy to operate the control, a certain degree of labor cost savings;
*Saving land: this equipment adopts a tank design to maximize the use of the land area.
*Environmentally friendly design: A unique exhaust gas treatment system can effectively remove harmful gases generated during fermentation.
